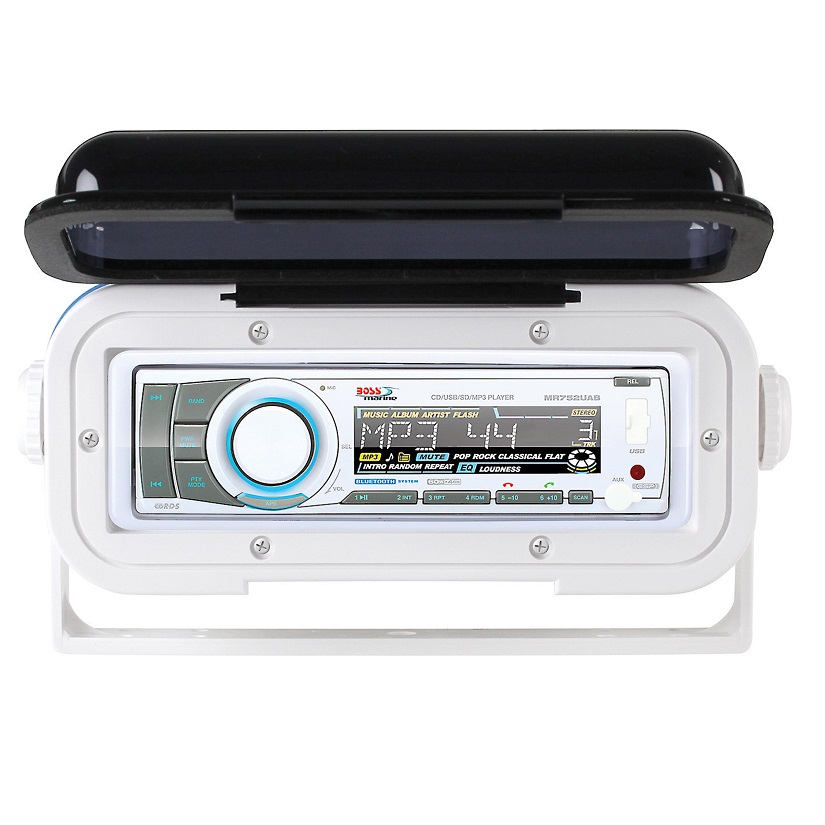

Boss Audio Universal Marine Radio Housing
Features:

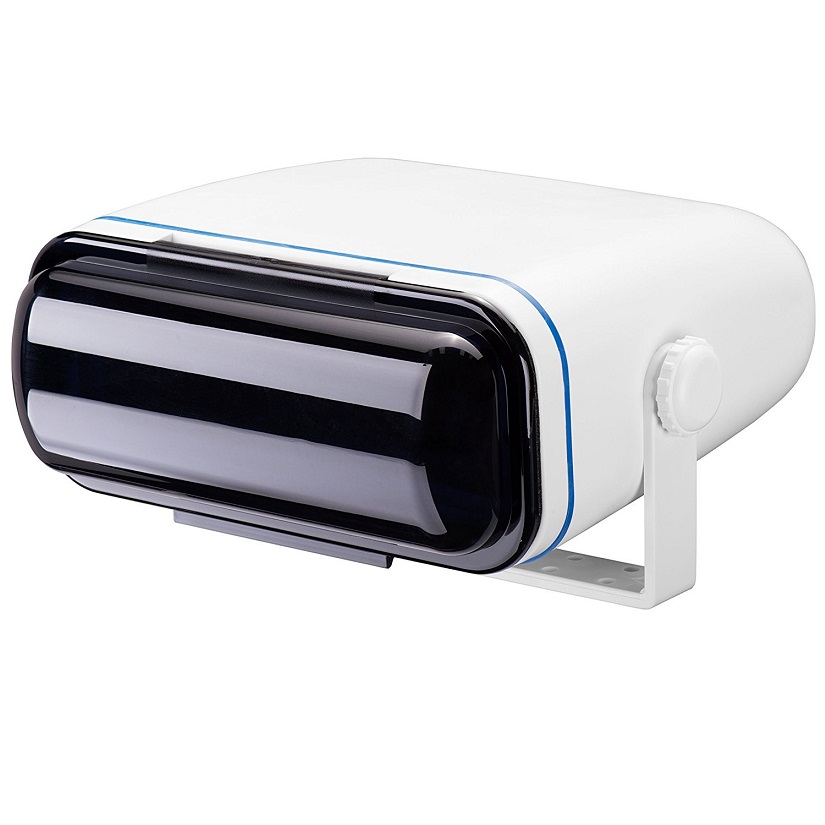

- Single DIN Fully Weather Proof Poly-carbonate Tinted housing to keep your radio dry and away from the elements

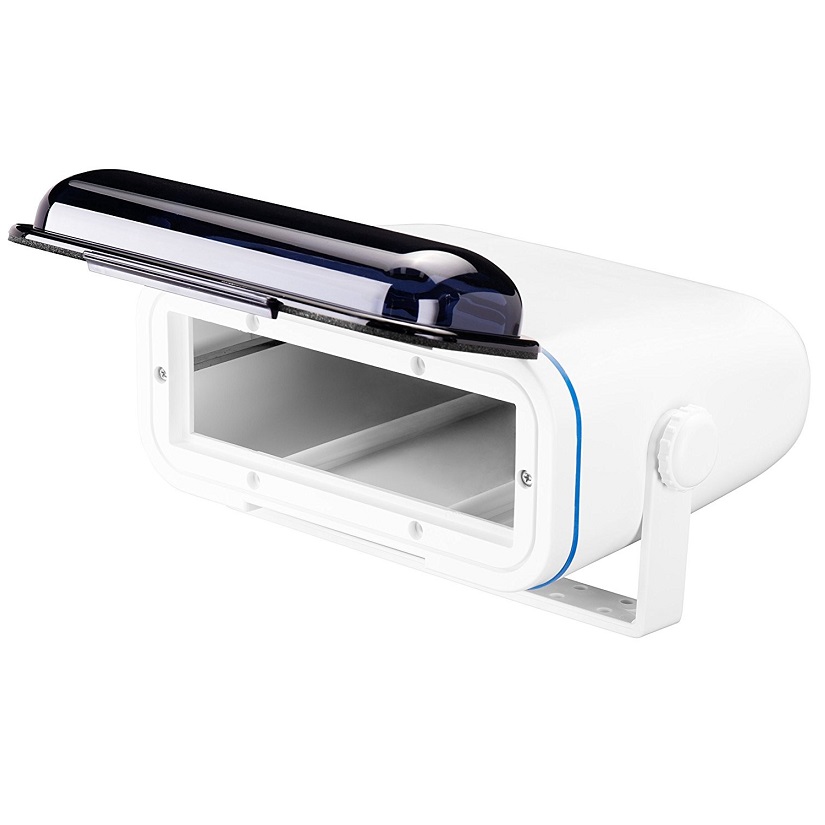

- Poly-carbonate Tinted lift up front lid
- UV-stabilized Impact-resistant ABS Plastic Housing

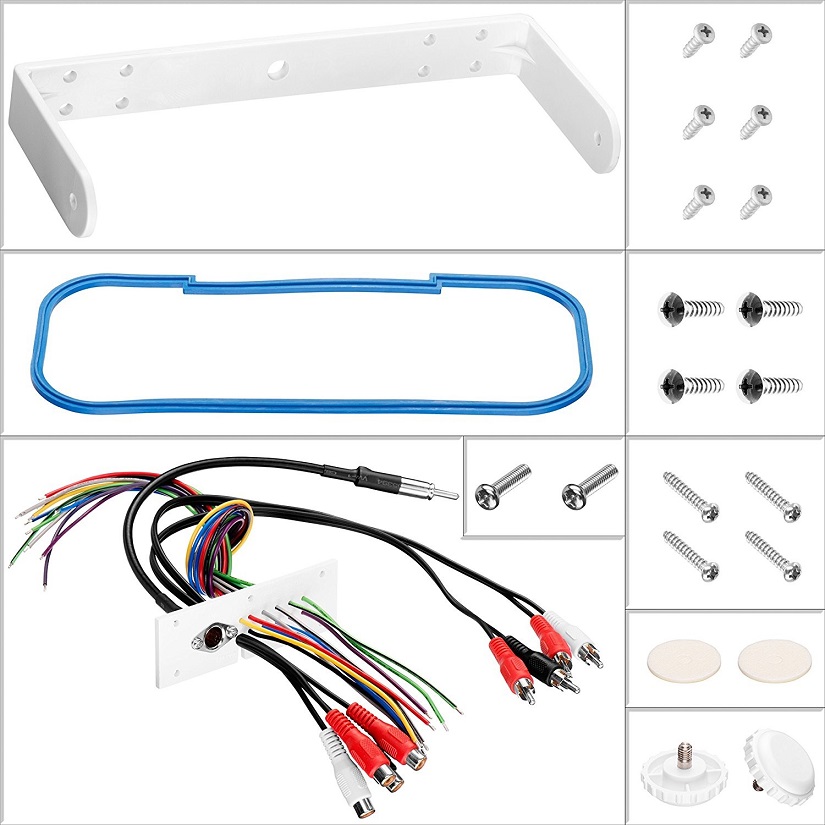

- Housing is sealed with heavy duty gasket and sealed wiring set
- Adjustable universal mounting bracket

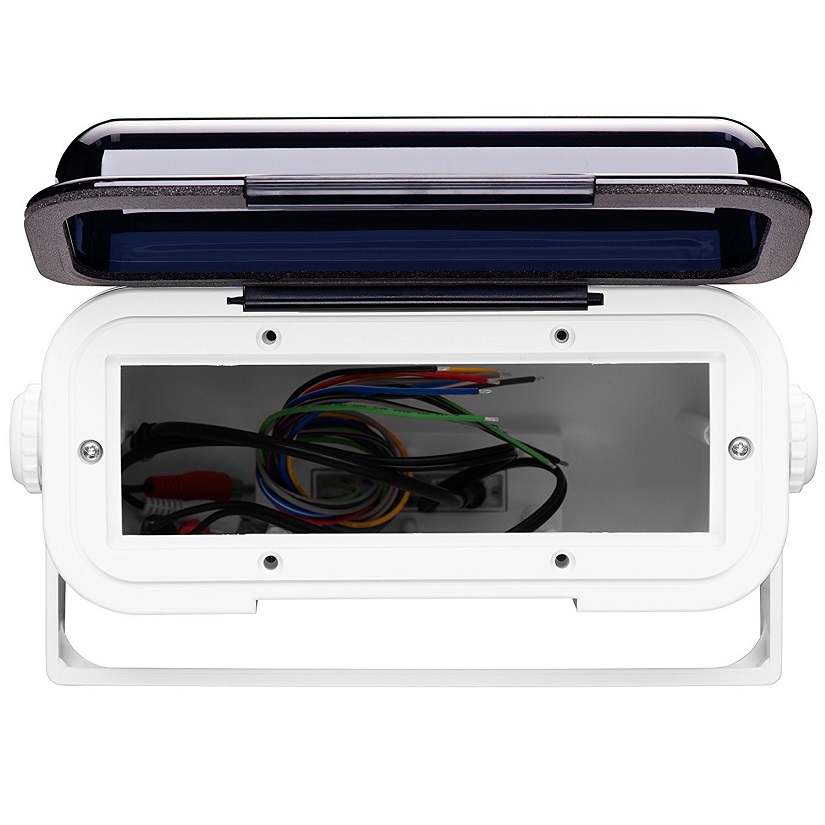

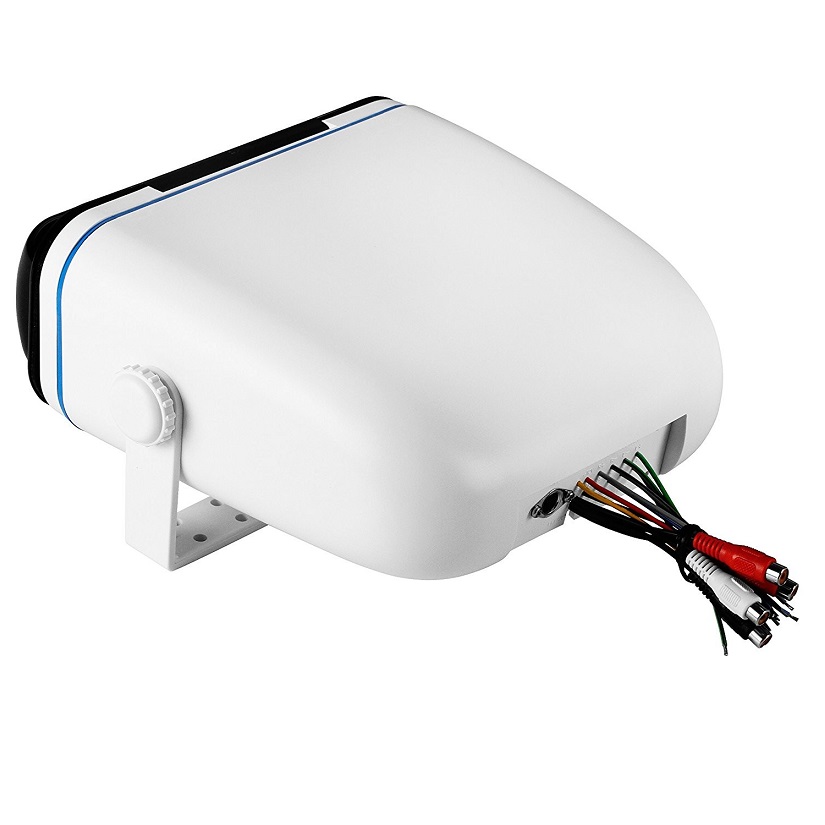

- External wiring for Power, Speakers and Preamp
- Universal marine radio housing
- Fully enclosed
Inputs and Outputs
- 1 – Motorola style antenna connector (Female and Male)
- Yellow – 12V Constant
- Red – 12V Accessory
- Black – Ground
- Blue – Power Antenna
- Orange – Dash Light Dimmer/Illumination
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
- (2) – 2 Channel RCA outputs (4 channels total)
