LECTROTAB – Τριμόμετρο Φλάπς Μή Αυτόματο LED 12/24Volt USA

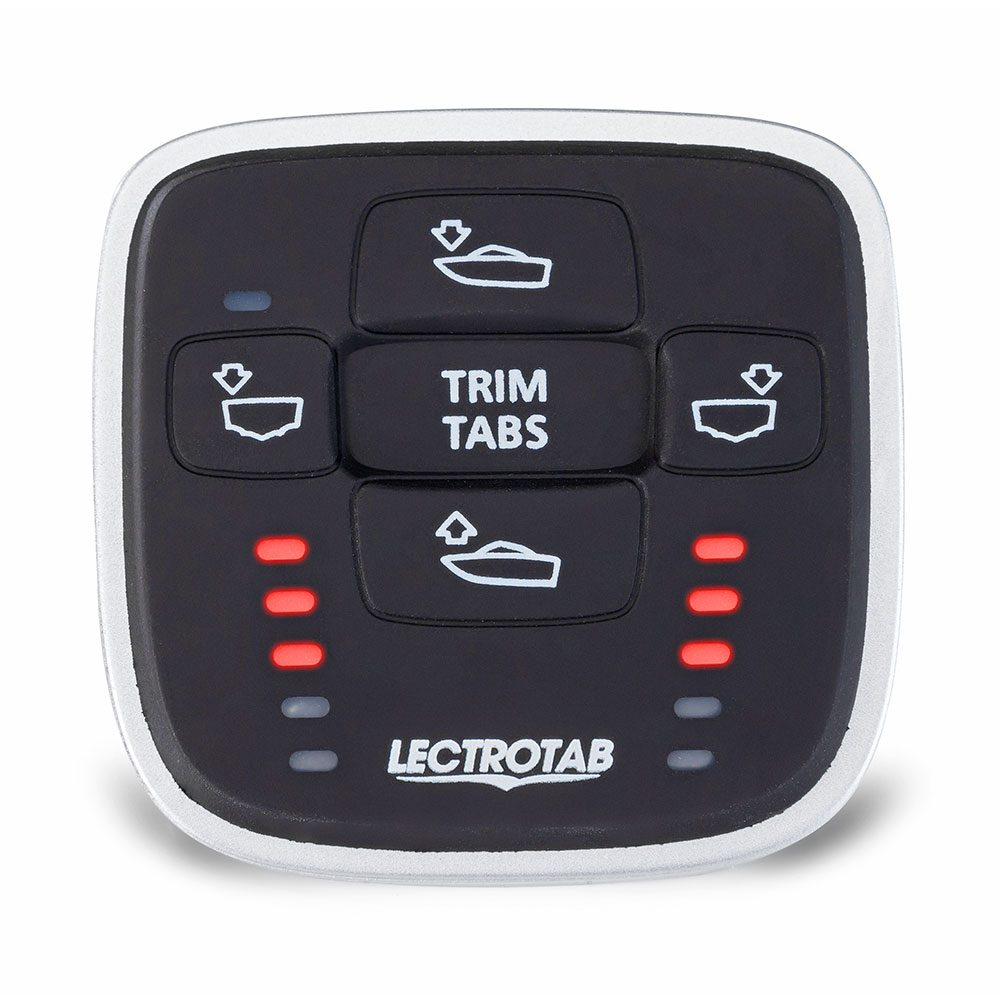

Lectrotab’s Manual Leveling (ΜLC-1) LED control incorporates features requested by boat owners to provide a user-friendly control for a more enjoyable boating experience.

• Single button touch control
• Automatic tab position return
• Sleek bezel design

FEATURES

• Microprocessor based trim tab control with LED tab position indicators
• Single button press to move both tabs up or down simultaneously
• Rubber overlay with a sleek bezel design
• Automatic return to last tab position if ignition key is turned off and back on again
• Completely sealed, completely waterproof and will not deteriorate in sunlight
• Automatic tab retraction and calibration with key or accessory switch off
• Easy upgrade from rocker switch style control or Oval control
• No external power module required for one actuator per tab system
• LED tab position indicators dim automatically in darkness and brighten in sunlight
• Adjustable programming features located on back of specification sheet
• Operates on 12 or 24 volt dc systems

ENTER, ADJUST & EXIT PROGRAM MODE:

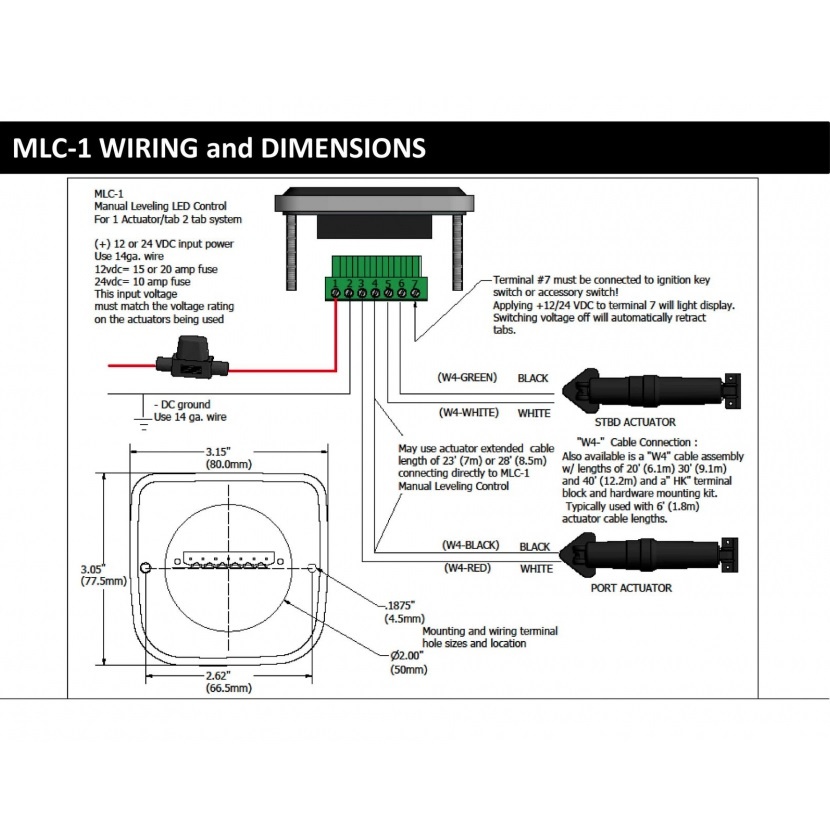

• Before entering program mode, 12vdc or 24vdc must be applied to MLC terminals 1, 2 and 7 (see wiring)
• Press and hold Bow Down (top) button and Bow Up (bottom) button for 4 seconds to enter program mode
• LED L1 (top left LED) will begin flashing and LED R1 (top right LED) will be lit constantly
• Press and release the Port Side Down (left) button to cycle through the three settings under “Setting”
• Press and release the Starboard Side Down (right) button to change the “Setting Value”
• Press and hold Bow Down (top) button and Bow Up (bottom) button for 4 seconds to exit and save newvalue
