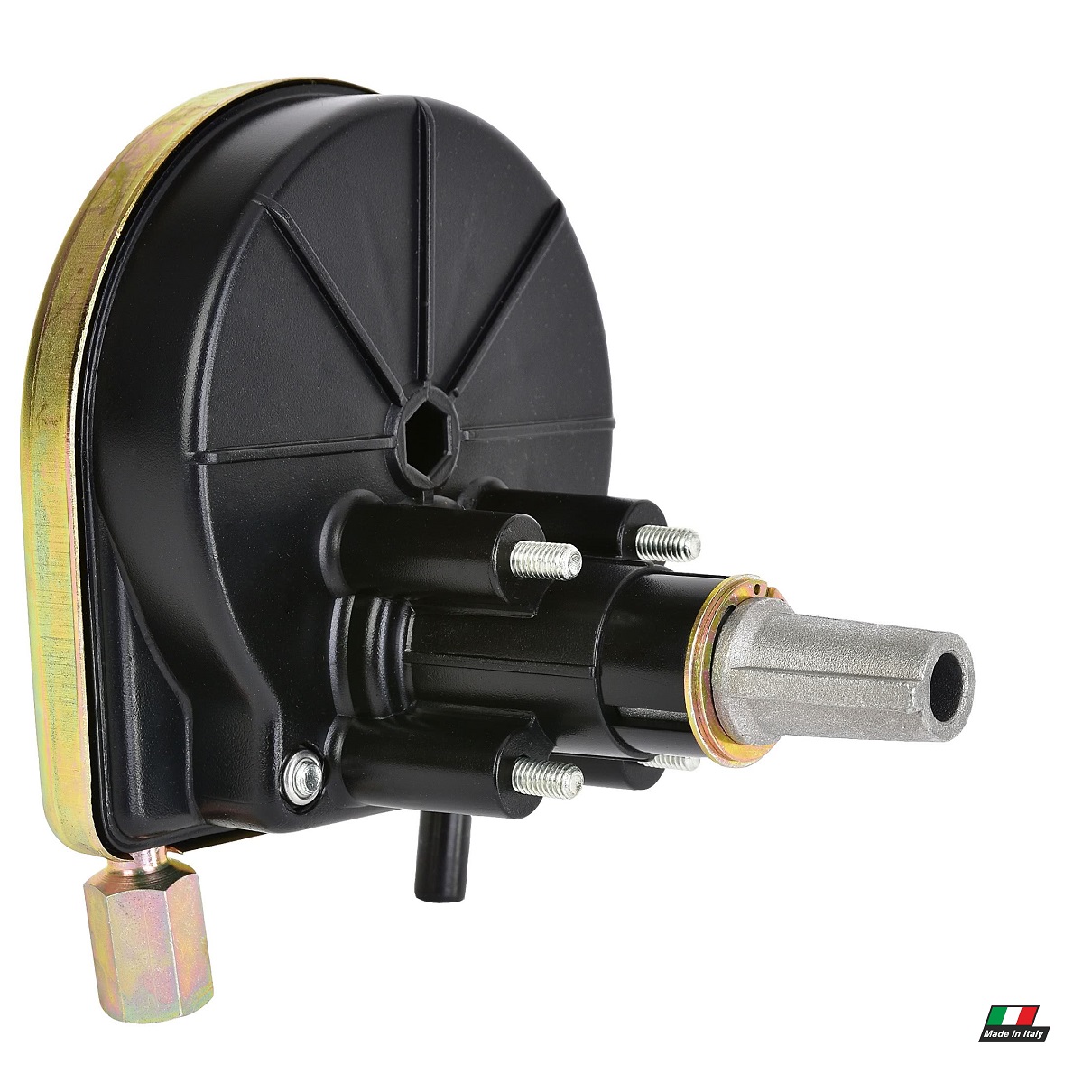

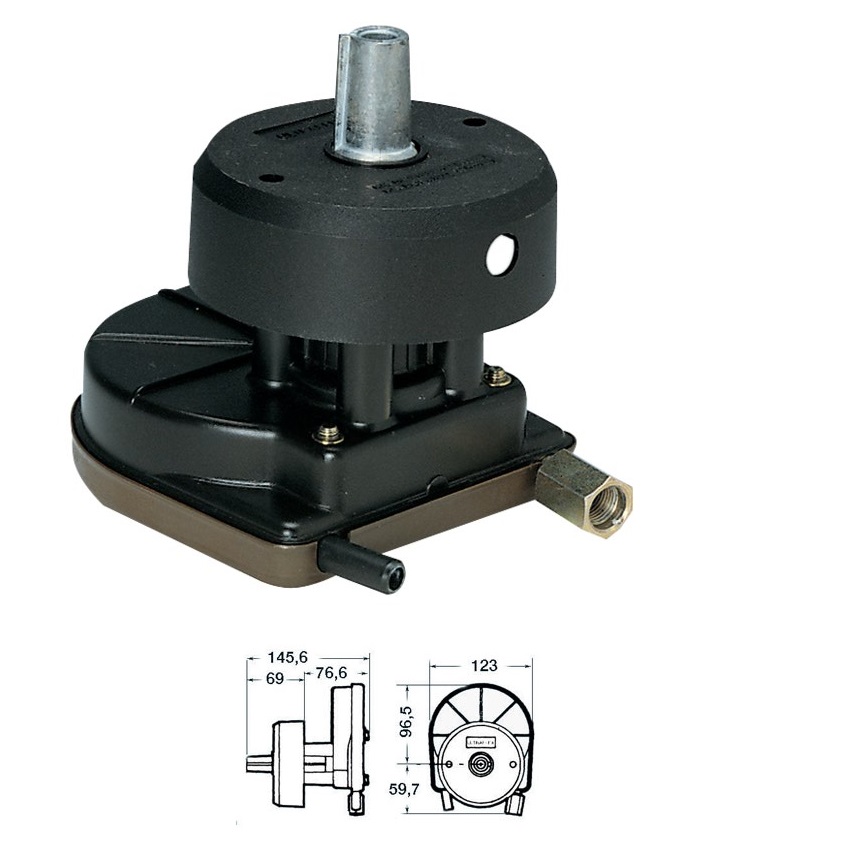

Ultraflex T67 outboard steering helm system.
T67 STEERING HELMS 55HP WITH BEZEL
For use with outboard engines up to 40kw (55hp), with the exception of EVINRUDE E-TEC 50 for which the use of T85 or T71FC is recommended.
Features and Technical Specification
- All stainless steel output end of cable as per ABYC P17 safety standards
- Corrosion resistant materials
- Standard Friction externally adjustable.
- 90° Black bezel
- Four optional helm positions to facilitate steering cable installation
- Lock-to-Lock steering wheel turns : Approx. 2.5
- Stroke: 230mm
- Maximum allowable steering wheel diameter: 380mm (15″)
- Minimum steering cable bend radius: 200mm (7.9″)
- Exceeds EN 29775 safety standards.
