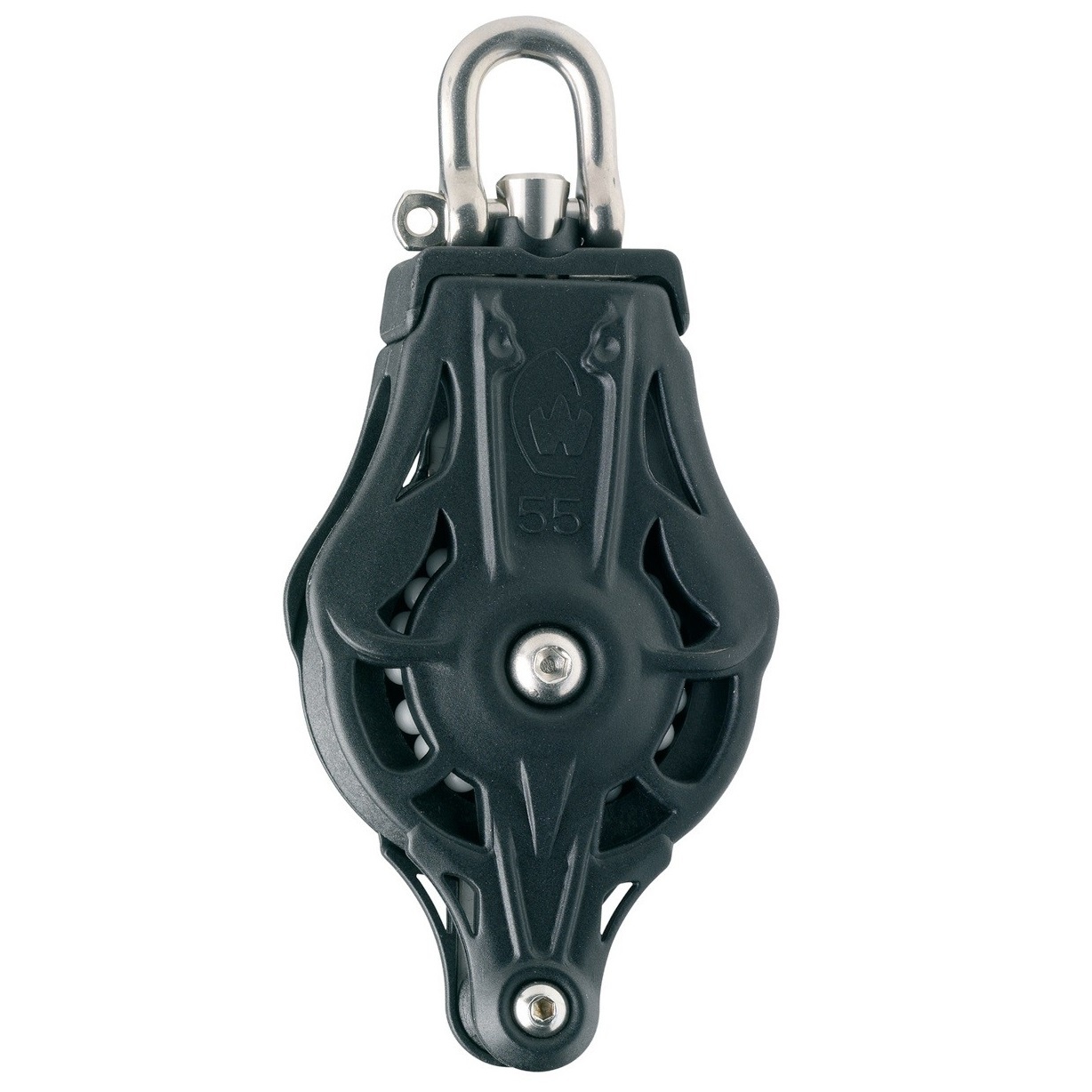

Single plain bearing block – Sheave 35 – Swivel head & becket
DESCRIPTION
Single plain bearing block – Sheave 35 – Swivel head & becket
Complete range of plain bearing blocks
Modern design Withstand high loads
Ideal for static operations
The sheave runs on the stainless steel bush
Light cheeks protecting the sheave Wide choice of fastenings thanks to the universal head
Applications Mainsheet systems
Halyard applications boom vangs spinnaker control lines on dinghies, catamaran and small keelboats
- Materials – Grade 316L stainless Steel head configuration
- Grade 316L stainless Steel load straps POM cheeks Composite saddle for cam models Composite sheave
- Terminal (shackle i.e…): 316L stainless Steel grade
- Rope size – 8mm
- Weight 65 g
- Sheave diameter 35 mm
- Shackle diameter 5 mm
- Length 101 mm
- Width 37 mm
- Thickness 23 mm
- Workload 320 Kg
- Breaking load 900 Kg
