This popular membrane panel series just got even better! With the incorporation of new digital IC, these panels are now more reliable, cheaper and with some more advanced features like reduced standby current, compact micro-USB cable connection, momentary button programmable for any button.
FEATURES
- Ultra Compact panel size (60% smaller than traditional panels)
- Easy to install – no mounting depth, minimum hole drilling (13.0 x 8.5mm)
- Use compact, ready accessible micro-USB cable, end user can replace cables of any desirable length
- Flexible wiring – Control Relay Box installed 1m away from the touch panel
- IP67 – Protected even under temporary water immersion (Panel only)
- ON-indication LED / 10A Self-resettable fuse for each branch
- Backlight module allowing easy operation in darkness
- Programmable momentary button – ALL buttons can be programmed to be momentary (ideal for horn or wiper applications)

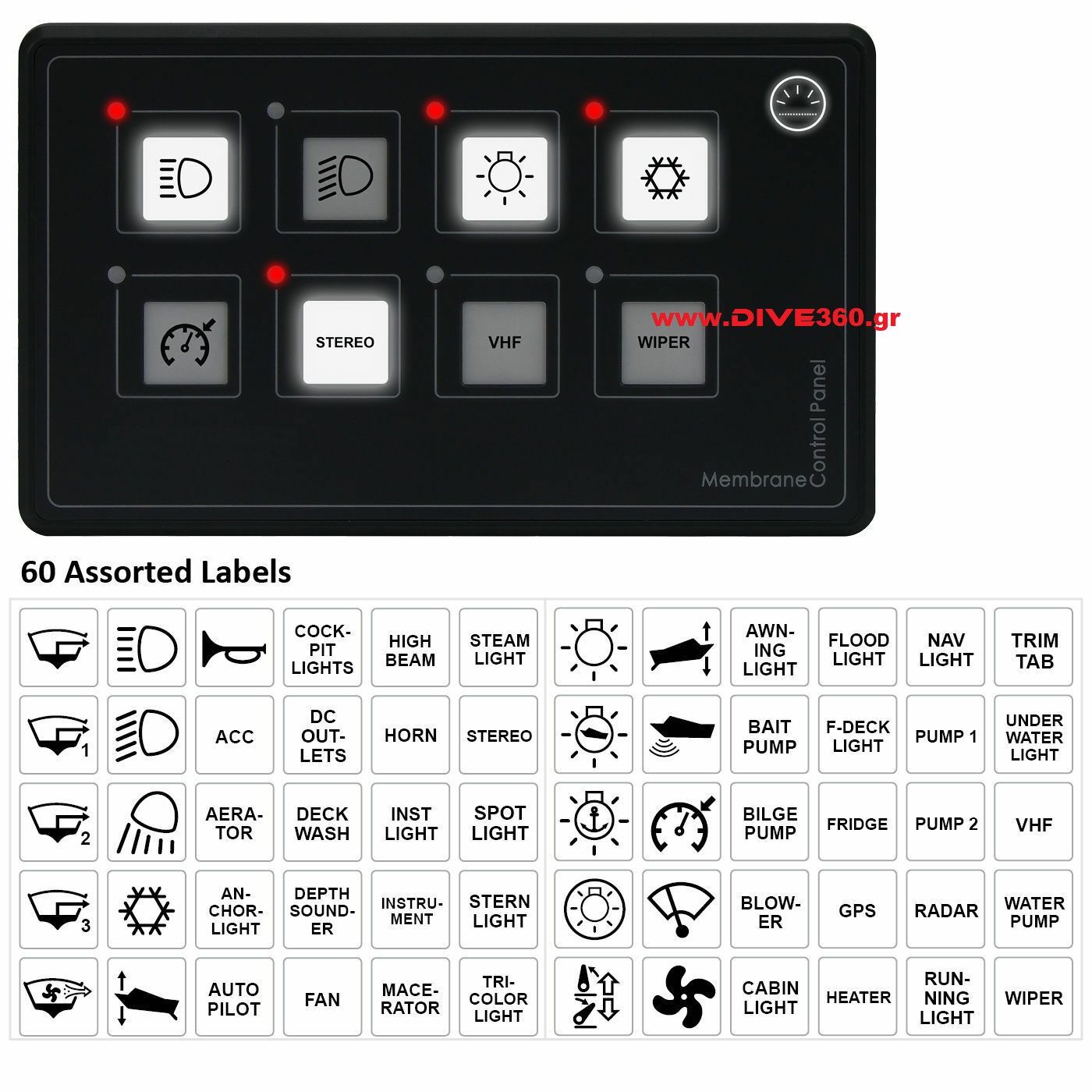

- 60pcs Assorted Graphic and Text labels stickers set included
SPECIFICATION
- Faceplate | PET membrane touch panel
- Circuit Protection | Built-in Resettable Fuse (PPTC)
- Switch Ratings | 10A per branch
- Panel Rating | Max Cumulative Amp: 75A
- Voltage Rating | DC 12V
DIMENSIONS 12 Button
- Panel Dimensions | (W x H) 130 x 75mm
- Control Box Dimensions | (H x W x D) 214 x 95 x 29 mm
- Panel Cut-out (W x L) | ø15 mm (13 x 8.5 mm)
CERTIFICATION
