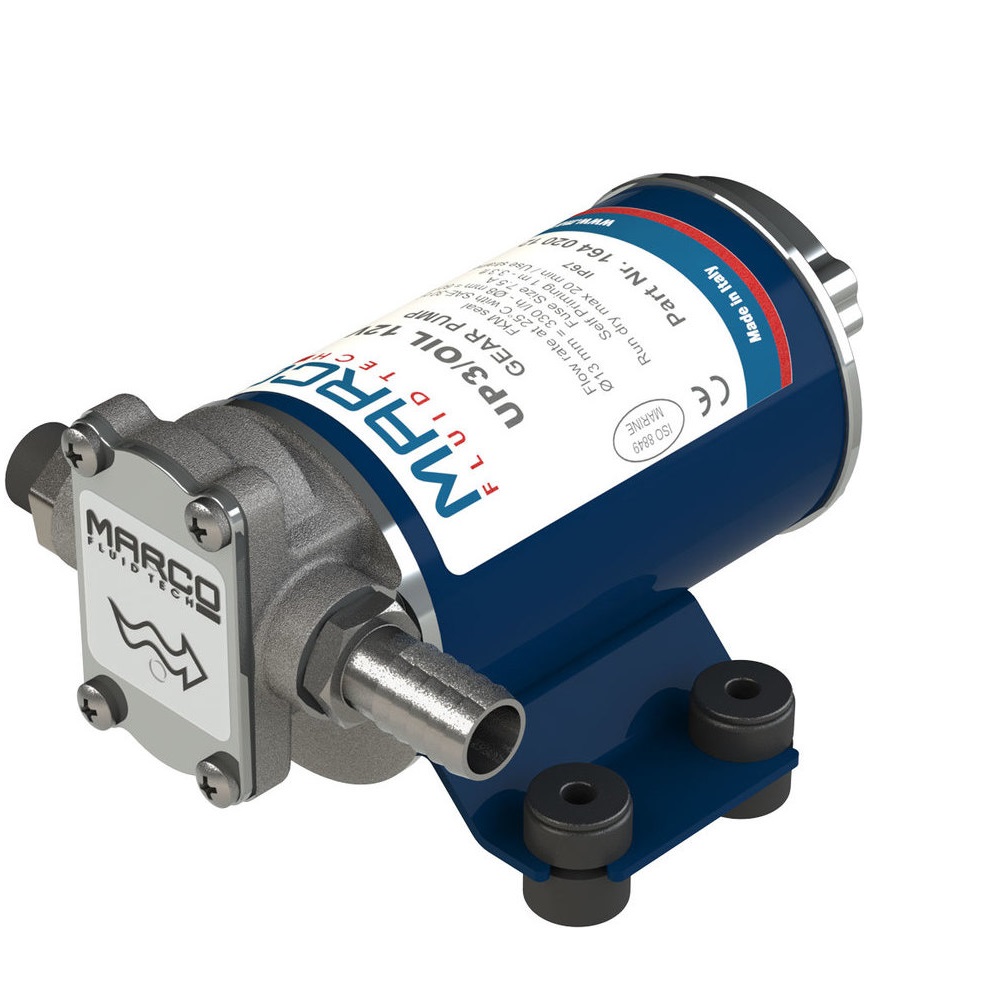

Marco 164 020 12, UP3/OIL
Self-priming electric particularly designed for the transfer of lubricating oils or viscous liquids. The pumping elements are made up of bronze gears which can possibly even run dry for brief
periods.
Application
- Transferring of lubrificating oils and viscous liquids.
- Transferring of antifreezing.
- Draining of engine pumps.
Fluids Allowed
- Fresh Water
- Diesel Fuel (Minimum flashpoint (PM): 38 °C-100 °F)
- Oil (max 120 °C-248 °F)
- Warranty expiries if max fluid temperature is exceeded
Fluids Not Allowed
Petrol (Gasoline) => Danger: Fire / Explosion
Flammable Liquids with PM < 38 °C – 100 °F => Danger: Fire / Explosion
Liquids with viscosity > 350 cSt => Danger: Motor overheating
Corrosive chemical products => Danger: Pump corrosion – Injury to personnel
Solvents => Danger: Fire / Explosion – Damage to seals
Technical data:
- Reference: Marco 164 020 12
- Voltage: 12V
- Fuse: A 7,5
- Flow rate: l/min Ø6 0,3 – Ø8 1 – Ø13 5,5
- Weight: 1,4 kg
- Wire size: (mm2) 1,5
Length up to 2 m - Type: Marco UP3/OIL
- IP 67: Code, International Protection Marking.
Dust tight: No ingress of dust; complete protection against contact (dust tight)
Immersion up to 1 m: Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion).
