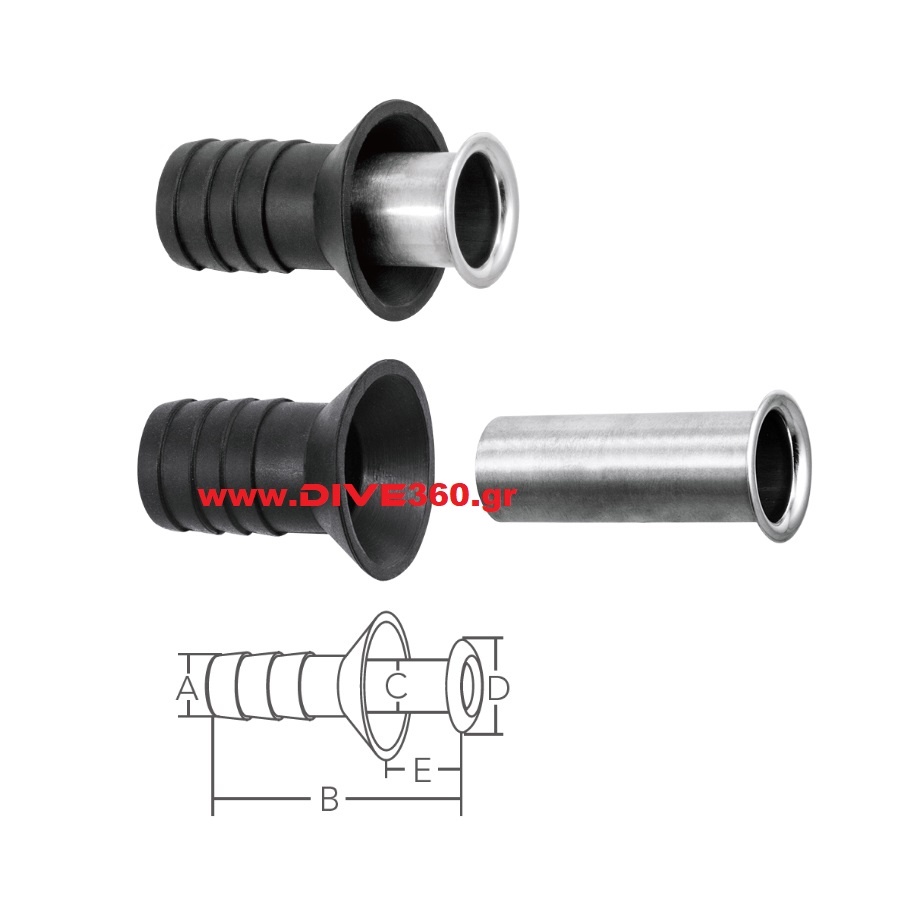

MINI THRU HULL

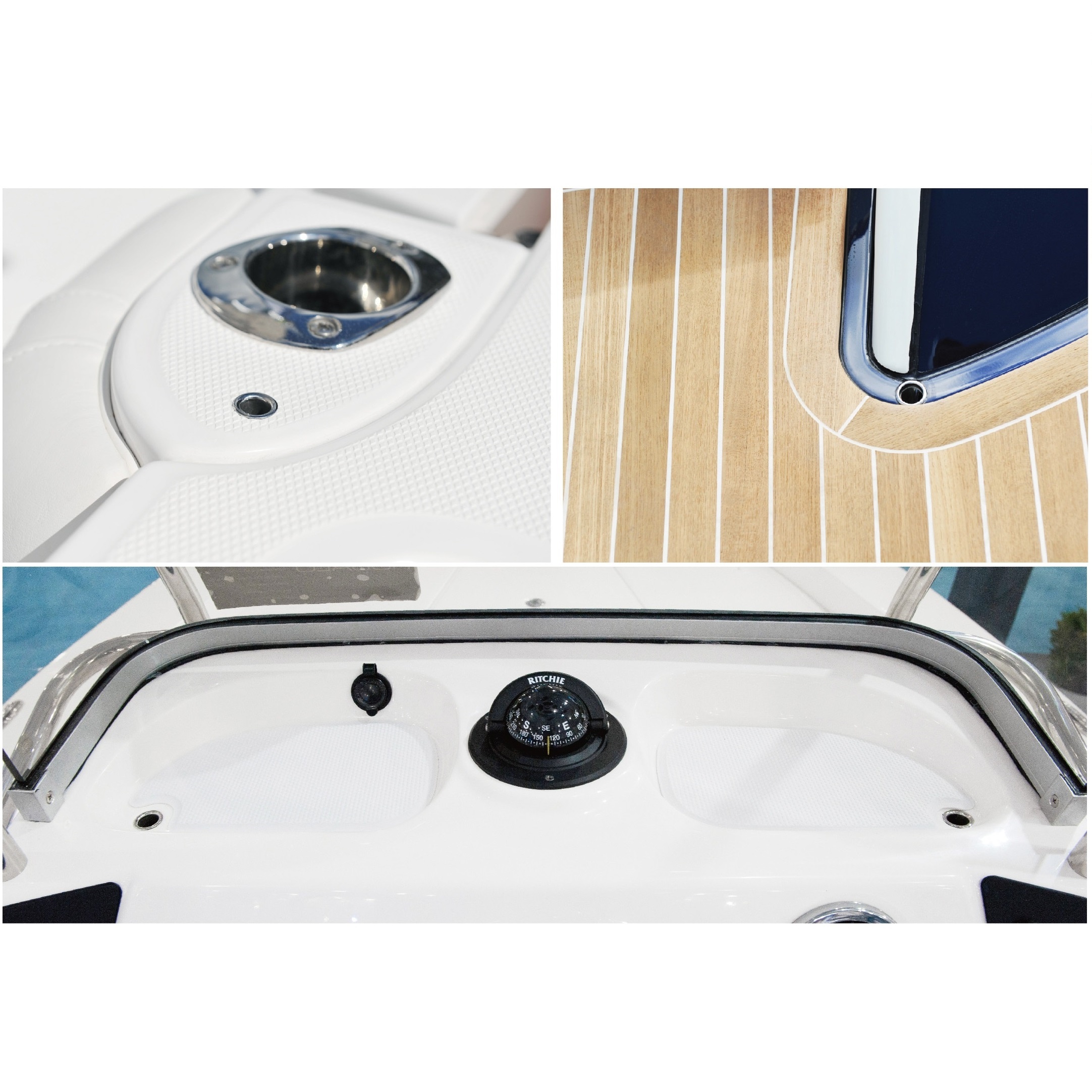

– Ideal for cup holder, cleat, rod holder, hatch gutter, deck and ice chest drain.
– The barbed internal rear rubber receptor allows quick fit-up.
– Simply push stainless steel outlet tube into the receptor for assembly.
Drainage hose is then attached and hose clamped into place to create a strong and
secure connection.
Kωδικός προϊόντος |
A mm |
B mm |
C mm |
D mm |
E-Max. mm |
90697 | 10(3/8″) | 36(1-7/16″) | 8(5/16″) | 13(1/2″) | 9(3/8″) |
90699 | 13(1/2″) | 36(1-7/16″) | 10(3/8″) | 16(5/8″) | 9(3/8″) |
90700 | 16(5/8″) | 39(1-9/16″) | 13(1/2″) | 19(3/4″) | 9(3/8″) |
